Markdown Formatting Options

Thursday, 17 October 2024 - ⧖ 9.0 min
🗒️

Common Markdown

The content on Marmite accepts any valid CommonMark or Github Flavoured markdown and some GFM extensions, Marmite also does post processing of HTML to support features such as back-links and Obsidian links.

Paragraphs and formatting

Simple paragraph and usual formatting like bold, underline, italic and also all sorts of formatting elements, as follows.

**bold**, __underline__, *italic*

Strike-through

The following is no more.

The following is ~~no more~~.

Table

Syntax Description
Header Title
List Here's a list!
  • Item one.
  • Item two.

| Syntax      | Description |
| ----------- | ----------- |
| Header      | Title |
| List        | Here's a list! <ul><li>Item one.</li><li>Item two.</li></ul> |

Footnotes

Here is a simple footnote1. With some2 additional text after it.

A reference1 can also be used to just create a link hidden from footnotes.

Here is a simple footnote[^1]. With some[^2] additional text after it.

A reference[1] can also be used to just create a link hidden from footnotes.

And on the end of the file:

[^1]: My footnote.
[^2]: Another footnote.

[1]: <https://en.wikipedia.org/wiki/Hobbit#Lifestyle> "Hobbit lifestyles"

Tip

Add global references to the _references.md file to reuse on any content.

Important

Footnote definitions must be separated from other content (like link references) by a blank line. Without a blank line, subsequent content may be parsed as part of the footnote instead of as separate definitions.

Block quote

Not a quote quote

Nested quote

>Not a quote
> quote
> > > Nested quote

Multiline quote

"Marmite is the easiest SSG" created by Bruno Rocha with the contribution of various people.

>>>
"Marmite is the easiest SSG" created by
Bruno Rocha with the contribution of various people.
>>>

Multi paragraph quote

Dorothy followed her through many of the beautiful rooms in her castle.

The Witch bade her clean the pots and kettles and sweep the floor and keep the fire fed with

> Dorothy followed her through many of the beautiful rooms in her castle.
>
> The Witch bade her clean the pots and kettles and sweep the floor and keep the fire fed with

Rich quotes

The quarterly results look great!

  • Revenue was off the chart.
  • Profits were higher than ever.

Everything is going according to plan.

> **The quarterly results look great!**
>
> - Revenue was off the chart.
> - Profits were higher than ever.
>
>  *Everything* is going according to **plan**.

Underline

dunder

__dunder__

Code

import antigravity

def main():
    print("Python is a great language")
fn main() {
    println!("Marmite is made with Rust!");
}
```python
import antigravity

def main():
    print("Python is a great language")
```

```rust
fn main() {
    println!("Marmite is made with Rust!");
}
```

lists

  • lists
    • sub item
  • images
    • other
  • tables
  • Formatting
- lists
  - sub item
- images
  * other
- tables
- Formatting

Numbered

  1. First item
  2. Second item
    • Indented unordered item
    • Indented unordered item
  3. Third item
    1. Indented ordered item
    2. Indented ordered item
  4. Fourth item
1. First item
1. Second item
    - Indented unordered item
    - Indented unordered item
1. Third item
    1. Indented ordered item
    1. Indented ordered item
1. Fourth item

Starting lists with numbers requires a number\

  • 1983. A great year!
  • I think 1984 was second best.
- 1983\. A great year!
- I think 1984 was second best.

Images



Same but containing a tooltip if you hover the mouse on

A jar of Marmite

![Photo](media/marmite.jpg)

Same but containing a tooltip if you hover the mouse on
![Photo](media/marmite.jpg "A jar of Marmite")

Creating Links

Regular link

Marmite

A link with a tooltip

[Marmite](https://github.com/rochacbruno/marmite)

[A link with a tooltip](https://pudim.com.br "A picture of a pudim")

Auto-link

https://github.com/rochacbruno/marmite
https://www.markdownguide.org
fake@example.com

https://github.com/rochacbruno/marmite
<https://www.markdownguide.org>
<fake@example.com>

Wikilinks

Wikilinks allows to link using [[name|url]] syntax.

Read the Tutorial and Read the Tutorial and Read the Tutorial

Anchors also supported FAQ

Pudim

It also resolve anchors like Wikilinks
and internal content by title like MD Wikilinks or MD Format

[[Read the Tutorial|getting-started]] and [[Read the Tutorial|getting-started.md]] and [[Read the Tutorial|getting-started.html]]

[[Pudim|https://pudim.com.br]]

It also resolve anchors like [[Wikilinks|#wikilinks]]
and internal content by title like
[[MD Wikilinks|Markdown Format#Wikilinks]] or [[MD Format|Markdown Format]]

Obsidian Links

Obsidian links are made using [[page-slug]] or [[page-slug.md]]

Example:

about and about and about should point both to the about page.

Anchors also supported about > faq

https://pudim.com.br

It also resolve anchors like Obsidian Links
and internal content by title like
Markdown Format > Obsidian Links or Markdown Format

[[about]] and [[about.md]] and [[about.html]] should point both to the about page.

Anchors also supported [[about#faq]]

[[https://pudim.com.br]]

It also resolve anchors like [[#Obsidian Links]]
and internal content by title like
[[Markdown Format#Obsidian Links]] or [[Markdown Format]]

Note

If you want to use Obsidian links with display text like in [[link|display text]] check how the options wikilinks_title_before_pipe and wikilinks_title_after_pipe on Configurable Markdown Parser Options

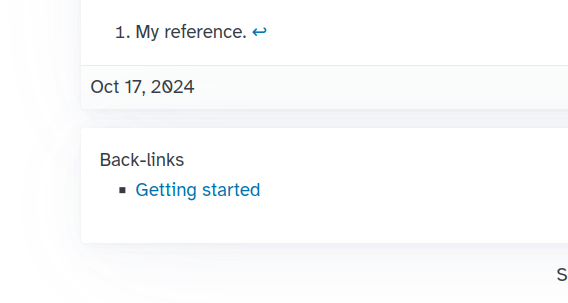

Back-links

Every time you link to another page or post using the backreference like {slug}, {slug}.md or {slug}.html marmite will track the backlinking and show a list of pages that links to each other.

Examples:

hello Hello1 Hello2 Hello3 Hello4 Hello5

[[hello]]
[Hello1](hello.html)
[Hello2](hello.md)
[[Hello3|hello]]
[[Hello4|hello.md]]
<a href="hello.html">Hello5</a>

In any case the hello.html page will have a this page on its list of back-links:

Backlinks

Extensions

Task

  • Task 1
  • Task 2
- [x] Task 1
- [ ] Task 2

Emoji

😄 - 🦀 - 🐍

:smile: - :crab: - :snake:

Description lists

First term
Details for the first term
Second term
Details for the second term
More details in second paragraph.
First term
: Details for the **first term**

Second term
: Details for the **second term**
: More details in second paragraph.

Spoiler

This is secret

This is ||secret||

Math

Depends on extra: {"math": true} defined on frontmatter, then MathJax is loaded.

When $a \ne 0$, there are two solutions to \(ax^2 + bx + c = 0\) and they are $$x = {-b \pm \sqrt{b^2-4ac} \over 2a}.$$

Inline math $1 + 2$ and display math $$x + y$$

$$ x^2 $$

When $a \ne 0$, there are two solutions to \\(ax^2 + bx + c = 0\\) and they are
$$x = {-b \pm \sqrt{b^2-4ac} \over 2a}.$$

Inline math $1 + 2$ and display math $$x + y$$

$$
x^2
$$

Alerts

Github Flavored Markdown (GFM) supports alerts, also called callouts or admonitions.

Note

Highlights information that users should take into account, even when skimming.

Tip

Optional information to help a user be more successful.

Important

Crucial information necessary for users to succeed.

Warning

Critical content demanding immediate user attention due to potential risks.

Caution

Negative potential consequences of an action.

> [!NOTE]
> Highlights information that users should take into account, even when skimming.

> [!TIP]
> Optional information to help a user be more successful.

> [!IMPORTANT]
> Crucial information necessary for users to succeed.

> [!WARNING]
> Critical content demanding immediate user attention due to potential risks.

> [!CAUTION]
> Negative potential consequences of an action.

Optionally a title can be added to the alert:

For your attention

Highlights information that users should take into account, even when skimming.

> [!NOTE] For your attention
> Highlights information that users should take into account, even when skimming.

Diagrams

Marmite renders mermaid diagrams to inline SVG at build time by default. No JavaScript is loaded on the page and no per-content frontmatter is needed - just write mermaid fenced code blocks in your markdown.

Customizing native mermaid rendering

When using the default native rendering (native_mermaid_render: true), you can customize the mermaid renderer (theme, spacing, colors, etc.) using mermaid_config at three levels with deep merge:

Site-wide in marmite.yaml:

mermaid_config:
  theme: dark
  themeVariables:
    primaryColor: "#BB2528"
    fontFamily: "Inter, sans-serif"
  flowchart:
    nodeSpacing: 80
    rankSpacing: 60
  preferredAspectRatio: "16:9"

Per-folder in frontmatter.yaml:

mermaid_config:
  theme: forest

Per-page in frontmatter:

---
title: My Diagram Page
mermaid_config:
  flowchart:
    nodeSpacing: 120
---

Values deep-merge across layers (site < folder < page), so a page can override just one setting without losing the rest. The config accepts the same keys as the mermaid-rs-renderer JSON config format using camelCase keys.

Note

mermaid_config only applies to the native build-time rendering. If you opt out with native_mermaid_render: false, these options have no effect and you should use the client-side configuration instead (see below).

Client-side rendering

To use client-side rendering instead, set native_mermaid_render: false in marmite.yaml and add extra: {"mermaid": true} to each content's frontmatter. MermaidJS is then loaded from a CDN and renders diagrams in the browser. Use extra: {"mermaid_theme": "dark"} to set the theme per page, with values forest, neutral, dark, base, default. Unlike mermaid_config, this must be configured individually on each content file.

Example Diagrams

Sequence
Bob thinks alonglong time, solongthat the textdoesnot fit on a row.Hello Bob, howare you?How about youJohn?Checking withJohn...Yes... John, howare you?AliceBobJohnAliceBobJohn
Flowchart
Link textSquare RectCircleRound RectRhombus
Bar Chart
Sales Revenue4000540068008200960011000janfebmaraprmayjunjulaugsepoctnovdecRevenue (in $)
Pie Chart
79%17%RatsDogsCatsRatsPets adopted by volunteers
Timeline
History of marmite2024-10-13Created2024-10-14First Release2024-10-20Big refactor2024-10-22Diagramsupport

Tip

See more mermaid diagrams on Mermaid Examples

Click to see the raw mermaid
```mermaid
sequenceDiagram
    Alice ->> Bob: Hello Bob, how are you?
    Bob-->>John: How about you John?
    Bob--x Alice: I am good thanks!
    Bob-x John: I am good thanks!
    Note right of John: Bob thinks a long<br/>long time, so long<br/>that the text does<br/>not fit on a row.

    Bob-->Alice: Checking with John...
    Alice->John: Yes... John, how are you?

```

```mermaid
graph LR
    A[Square Rect] -- Link text --> B((Circle))
    A --> C(Round Rect)
    B --> D{Rhombus}
    C --> D

```

```mermaid
xychart-beta
    title "Sales Revenue"
    x-axis [jan, feb, mar, apr, may, jun, jul, aug, sep, oct, nov, dec]
    y-axis "Revenue (in $)" 4000 --> 11000
    bar [5000, 6000, 7500, 8200, 9500, 10500, 11000, 10200, 9200, 8500, 7000, 6000]
    line [5000, 6000, 7500, 8200, 9500, 10500, 11000, 10200, 9200, 8500, 7000, 6000]

```

```mermaid
pie title Pets adopted by volunteers
    "Dogs" : 386
    "Cats" : 85
    "Rats" : 15

```

```mermaid
timeline
    title History of marmite
    2024-10-13 : Created
    2024-10-14 : First Release
               : First Contribution
    2024-10-20 : Big refactor
    2024-10-22 : Diagram support
```

HTML

All raw html is allowed

Superscript

802

80<sup>2</sup>

Embed

Just use raw HTML for now, in future we may have a shorcode.

<iframe width="260" height="160" src="https://www.youtube.com/embed/MjrBTcnnK6c?si=PmQWsGiTh5XguSpb" title="YouTube video player"></iframe>

Pico CSS components

The default embedded template uses picocss so it is possible to write raw HTML like this:

FAQ

Why is it named Marmite?

The creator of this project was looking for some cool name to use for a markdown related project. Then while having bread with Marmite spread for breakfast it looked like a good idea!

Why Rust?

Why not?

<details>
<summary>Why is it named Marmite?</summary>

The ...

</details>

<hr />

<details>
<summary>Why Rust?</summary>

**Why not?**

</details>

<hr />

Symbols

Copyright (©) — &copy;
Registered trademark (®) — &reg;
Trademark (™) — &trade;
Euro (€) — &euro;
Left arrow (←) — &larr;
Up arrow (↑) — &uarr;
Right arrow (→) — &rarr;
Down arrow (↓) — &darr;
Degree (°) — &#176;
Pi (π) — &#960;

This is a ©left material.

This is a &copy;left material.

Bye!

  1. Another footnote.

    2. Please consider giving a ☆ on Marmite Github repository, that helps a lot!

  2. My footnote. ↩

  3. Another footnote ↩
